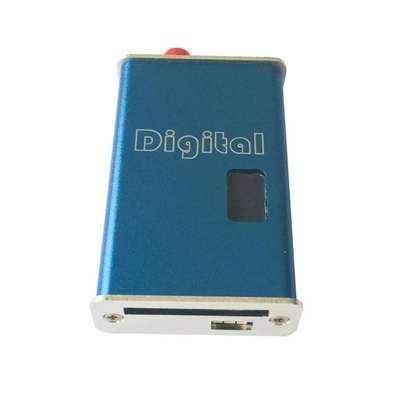

1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone

Name: 1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
Brand: Kimpok Technology Co., Ltd
SKU: KP-MN5A
Price: 145.00 USD
Availability: InStock

제품 세부 정보:

원래 장소:	중국 심천
브랜드 이름:	Kimpok
인증:	CE certificate
모델 번호:	KP-MN5A

자세한 정보

원래 장소:

중국 심천

브랜드 이름:

Kimpok

인증:

CE certificate

모델 번호:

KP-MN5A

강조하다:

High Light

강조하다:

1.5Ghz FPV VTX for RC drone

5W mini wireless video transmitter

FPV VTX with high power output

거래 정보

최소 주문 수량:

가격:

협상 가능

포장 세부 사항:

국제 표준 포장

배달 시간:

3-7 일

지불 조건:

L/C, T/T, PayPal

공급 능력:

5000pcs/월

제품 설명

1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone

Product Highlights

1.5Ghz FPV VTX for RC drone

5W mini wireless video transmitter

Analog VTX with long-range transmission

Basic Information

Place of Origin:

Shenzhen, China

Brand Name:

Kimpok Technology

Certification:

CE certification

Model Number:

KP-MN5A

Product Features

1.6G FPV VTX RC Racing Drone Wireless Video Transmitter
1.5Ghz frequency band for stable video transmission
Compact dimensions: 73×41×14mm
12 channels for flexible frequency selection
5000mW RF power for strong signal transmission

Technical Specifications

Specification	Details
Model Number	KP-MN5A
Frequency	1.5Ghz (1.4G/1.5G/1.6G)
RF Power	5000mW (1500mW transmit power)
Voltage	DC 12V
Current	600mA
Channels	12 Channels
Dimensions	73×41×14mm
Weight	90g (Transmitter: 82g)
Operating Temperature	-10℃ to +50℃
Certification	CE Certification

Installation Guide

The transmitter comes with 5 plugs for connecting to transmitter, camera, and power supply
Connect red plug to DC 12V/1000mA power source or battery
Connect white and yellow plugs to camera's audio and video inputs respectively
Connect black plug to camera's power input jack
Use control button to change receiver channel
Press and hold button to enable power saving mode
Ensure transmitter and receiver are set to same channel

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 working days

Payment Terms:

T/T, PayPal, Alipay

Supply Ability:
