| 원래 장소: | 중국 심천 |
| 브랜드 이름: | Kimpok |
| 인증: | CE certificate |
| 모델 번호: | KP-CM60H |

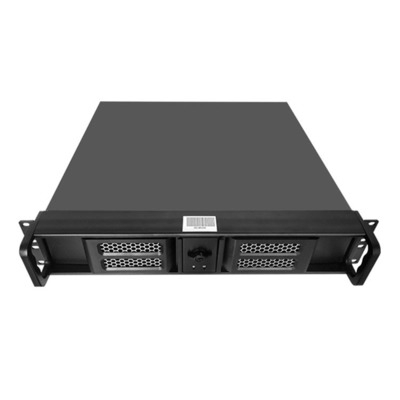

The KP-CM60H is a high-power RF device specifically designed for vehicle NLOS mobile digital image transmission. Featuring a standard 19-inch 2U dimension for easy installation in vehicles and boats, this transmitter supports one video channel and two audio channels with exceptional long-range transmission capabilities.
| Parameter | Specification |
|---|---|
| Place of Origin | Shenzhen, China |
| Brand Name | Kimpok |
| Certification | CE Certification |
| Model Number | KP-CM60H |
| Frequency/AV | 300-900MHz option or 1.2GHz; 2.4GHz; 5.8GHz |
| Frequency/DATA | 433MHz |
| Modulation | COFDM 2K QPSK |
| RF Power Output | 60-80W (adjustable) |
| Voltage | DC11-14.5V |
| Current | 4.7A |
| Video Rate | 15Mbps(MAX) |
| Parameter | Details |
|---|---|
| Constellation | QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz |
| FEC | 1/2,2/3,3/4,5/6,7/8 (optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Bandwidth | 2/2.5/4/8M(adjustable) |
| Video Interface | HDMI; SDI; CVBS |
| Encryption | AES 128 bit / ALLTECH Basic scrambling |
| Video Compression | H.265/H.264 |
| Resolution | 1280*720P / 1980*1080P |
| Operating Temperature | -25℃~55℃ |
| Size | 430*420*89mm |
| Weight | 12kg |
Ideal for car-to-car, boat-to-boat, vehicle-to-fixed station, boat-to-fixed station, and helicopter-to-fixed station communications. Can function as a repeater with transmission ranges up to 200km LOS from air and 50km NLOS distance when used with omni-directional antenna.
| Parameter | Details |
|---|---|
| Minimum Order Quantity | 1 Piece |
| Price | Negotiation |
| Packaging Details | International standard packing |
| Delivery Time | 3-7 work days |
| Payment Terms | T/T, PayPal, Alipay |
| Supply Ability | 5000/month |
